Craniosynostosis Surgery

Craniosynostosis is a congenital defect defined as the premature fusion of one or more cranial sutures. This fusion leads to growth restriction and deformation of the cranium, caused by compensatory expansion parallel to the fused sutures. Surgical correction is the preferred treatment in most cases to excise the fused sutures and to normalize cranial shape. Although multiple technological advancements have arisen in the surgical management of craniosynostosis, interventional planning and surgical correction are still highly dependent on the subjective assessment and artistic judgment of craniofacial surgeons. Therefore, there is a high variability in individual surgeon performance and, thus, in the surgical outcomes.

Courtesy of Centers for Disease Control and Prevention, National Center on Birth Defects and Developmental Disabilities (source:

Researchers of our group have worked in collaboration with craniofacial surgeons at Hospital General Universitario Gregorio Marañón (Madrid, Spain) to improve the surgical management of craniosynostosis by reducing subjectivity in all stages of the process, from the preoperative virtual planning phase to the intraoperative performance.

Intraoperative 3D Photography

We have demonstrated that 3D photography is a valuable alternative to CT imaging for the intraoperative evaluation of surgical outcomes during craniosynostosis surgeries. This technology enables accurate 3D reconstruction and cranial shape quantification during the surgical intervention, which can be used to provide intraoperative feedback to surgeons.

Acquisition of 3D photograph during craniosynostosis surgery using a mobile scanner.

Image-Guided Surgery

An intraoperative navigation system was developed to provide real-time guidance during open cranial vault remodeling. This system was specifically designed for craniosynostosis surgery, enabling accurate navigation while avoiding the invasive attachment of dynamic reference frames or infant’s head immobilization. The evaluation of the system demonstrated an optimal accuracy for bone fragment positioning, and feasibility of integration into the surgical workflow without substantially increasing operative time.

Intraoperative navigation for craniosynostosis surgery: (a) surgeon using tracked pointer tool for the registration of the patient’s anatomy during surgical intervention, (b) recorded navigation points along the cranial vault, and (c) recording of navigation points and real-time metrics in the supraorbital region.

Augmented reality

We proposed and evaluated a workflow for AR visualization to guide the osteotomy and remodeling phases of FOA by overlaying virtual information directly on the surgical field.  Our results demonstrated the accuracy of AR technology for surgical guidance in craniosynostosis, and its feasibility for integration into the surgical workflow. The developed software application can be used for visualization in smartphones, head-mounted displays, and external screens.

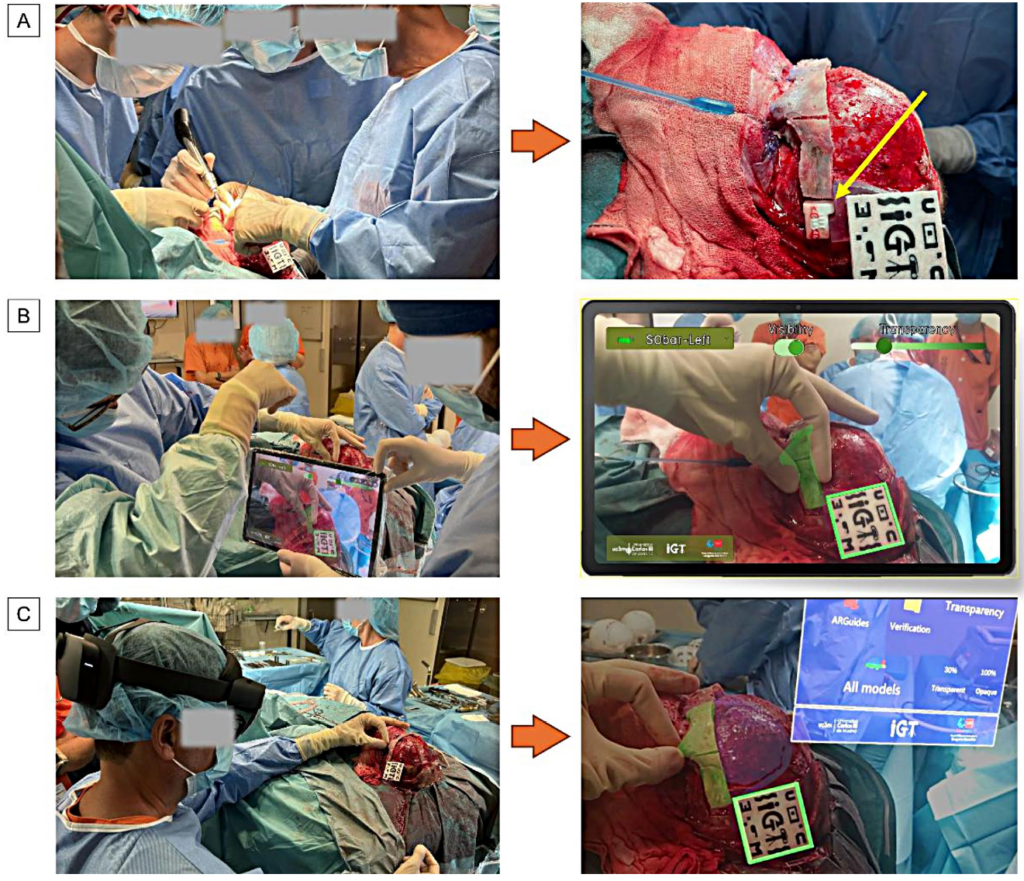

Augmented reality (AR) visualization to guide the positioning of the supraorbital bone fragment during open cranial vault remodeling.
